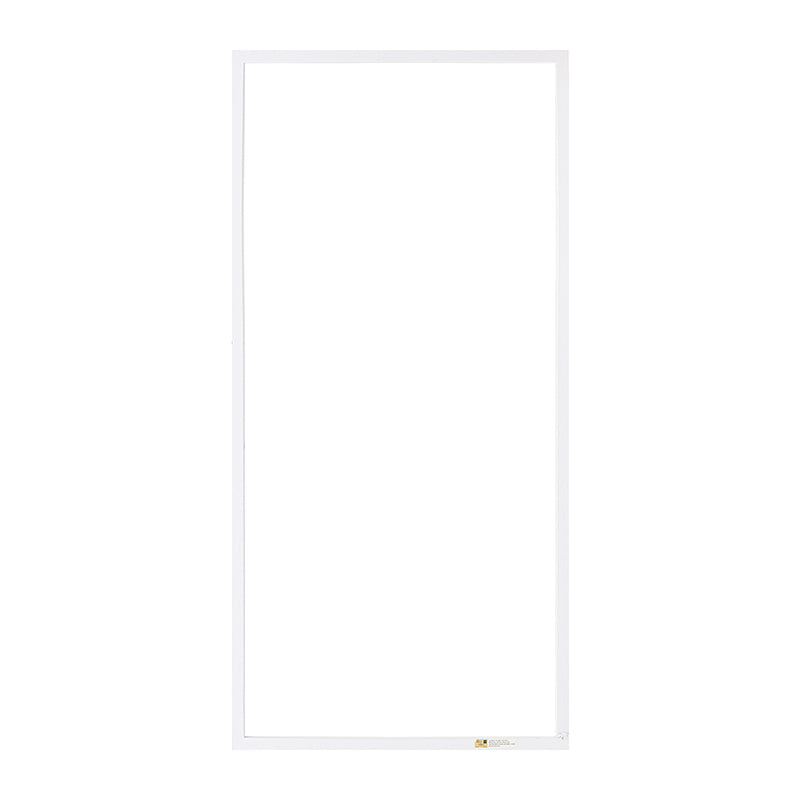

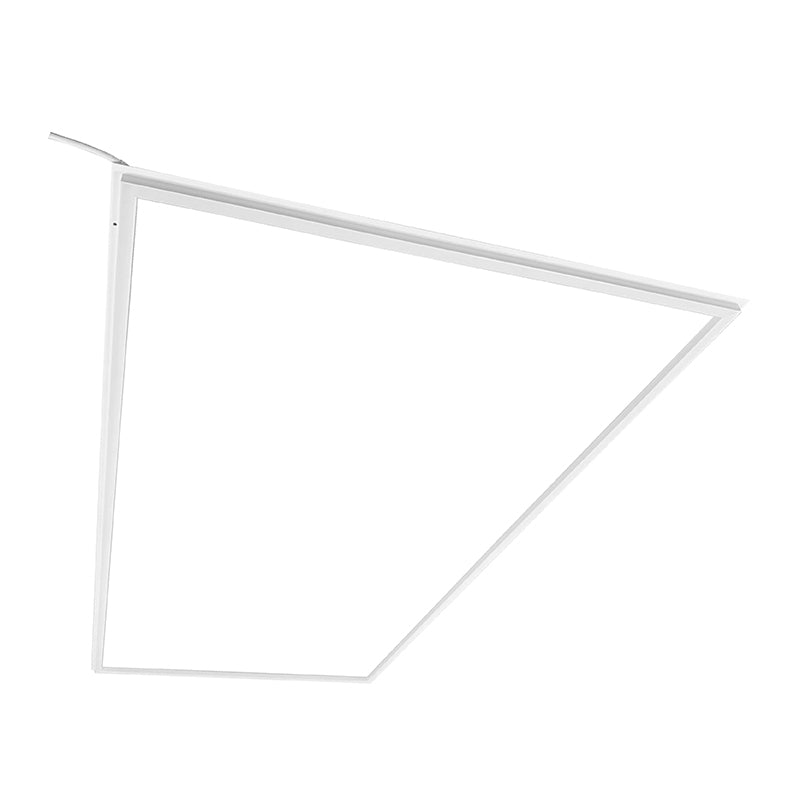

T-BAR 2X4 Grid Frame Light

TGL-2X4-MCTP

• Extruded Aluminum with White Finish
• High quality LED chips provide high efficiency, heat dissipation, stability and lumen maintenance
• Performance lens assembly delivers unique beam angles and reduce glare
• Driver/Junction box is separate and connects to the fixture with a 3Ft. Dongle.
• Driver/Junction box installs on adjacent grid, on top, using your choice of T-Bar bracket or Westgate T-Bar bracket model (ELB-TBAR1)
• Driver disconnect provided where required to comply with US and Canadian codes
• Surge protector
• Multi-Color temperature & Multi-Power (Selectable switch in driver box)
• Dimmable: 0 ~ 10V Driver for continuous dimming
• Lumens: 5250LM/6750LM/8100LM
• Wattage: 35W/45W/54W
• Voltage: 120-277V
• Efficacy: 150LPW
• Power Factor: >0.92
• Maximum Ambient Temperature: -22°F to 104°F
• Color Rendering Index: CRI ≥ 80
• Color Temp: 3000K/4000K/5000K
• Lifespan: 50,000 hours
• 5-year warranty
• IP Rating: IP20 Indoor use only
